Pressure Sand Water Filter

Sand filtration is frequently used and very robust method to remove suspended solids from water. The filtration medium consists of a multiple layer of sand with a variety in size and specific gravity. Sand filters can be supplied in different sizes and materials both hand operated or fully automatically.
Raw water pump is used for generating necessary operating pressure in the pressure sand filter. Raw water is passed through CHEMTRONICS Multigrade Sand Filter at a pressure of 3.5 kg / cm2 to reduce the suspended solids present in the raw water.

The filter will effectively remove up to 30 – 50 micron of the suspended solids to less then 5 ppm. The filter will have to be washed with raw water for 20 to 30 minutes daily. To filter the partials below 30 – 50 micron cartridge filter is used.

Applications for sand filtration :
• Preparation of cooling water
• Treatment of waste water
• Production of drinking water
• Filtration in swimming pools
• Pre filtration for membrane systems
• Filtration of gray or surface water
• Swimming pool water

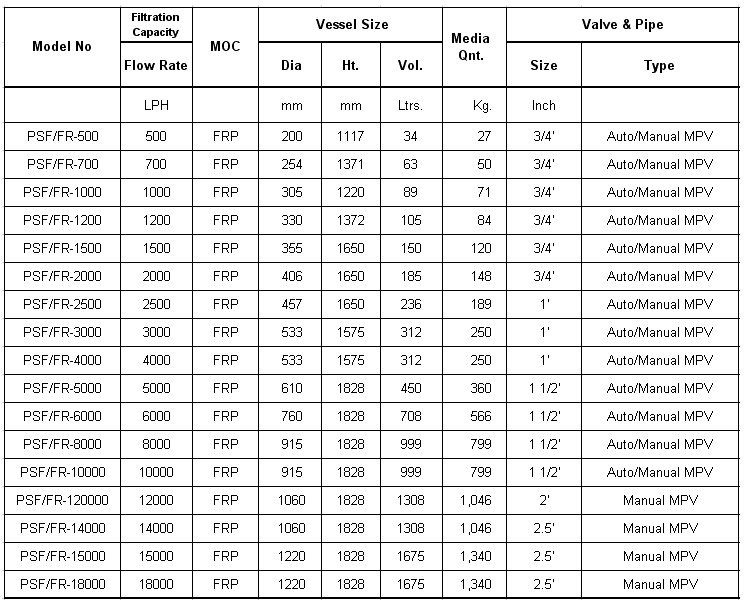

Pressure Sand Water Filter FR Series

Fiber Glass Reinforced Plastic (FGRP) composite vessels are 1/3 the weight of carbon steel, strengths are directly comparable to steel, no maintenance & high aesthetic appearance.

	• High performance Composite material • Thermoplastic liner of polyester – wall thickness 3.8 mm to 7.6 mm as per vessel diameter • 100 % corrosion resistant • Excellent bonding between inlet & PE liner • Better curing at high temperature • 200 mm to 1,000 mm diameter • All are top opening & dia 450 mm onwards top & bottom opening • 450 mm onward flange fitting • Operating Pressure – 10.5 kgf /cm2 • Operating temperature – 490 C • 250,000 times cycle test from 10 psi to 150 psi • Vessels are NSF & PED certified
Velocity : 12 to 17 M2	Model No. Suffix		A Auto Multiport Valve M Manual Multiport Valve B Butterfly Valve

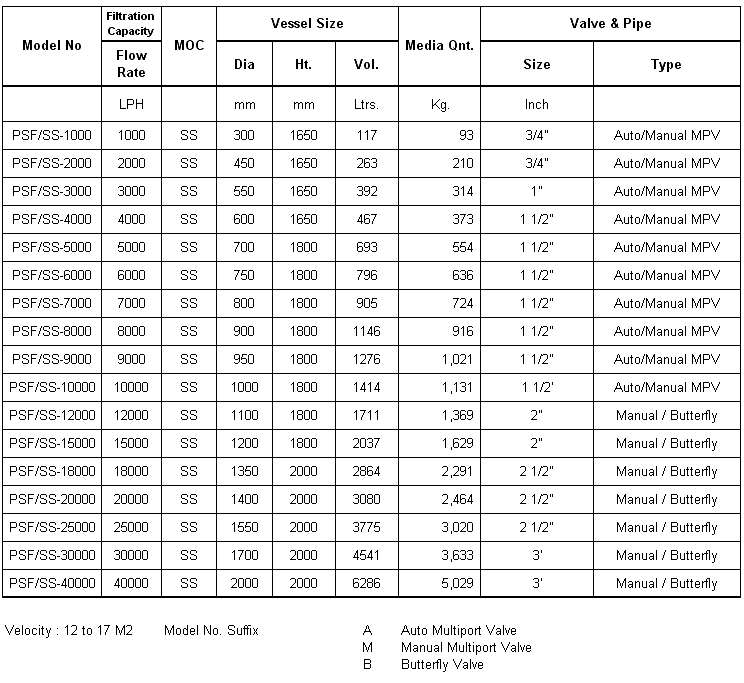

		Pressure Sand Water Filter SS Series Stainless steel pressure sand filters are widely used in following  applications : • Pharmaceutical product water • Dairy & food products. • Beverages • Package drinking water • Cosmetics

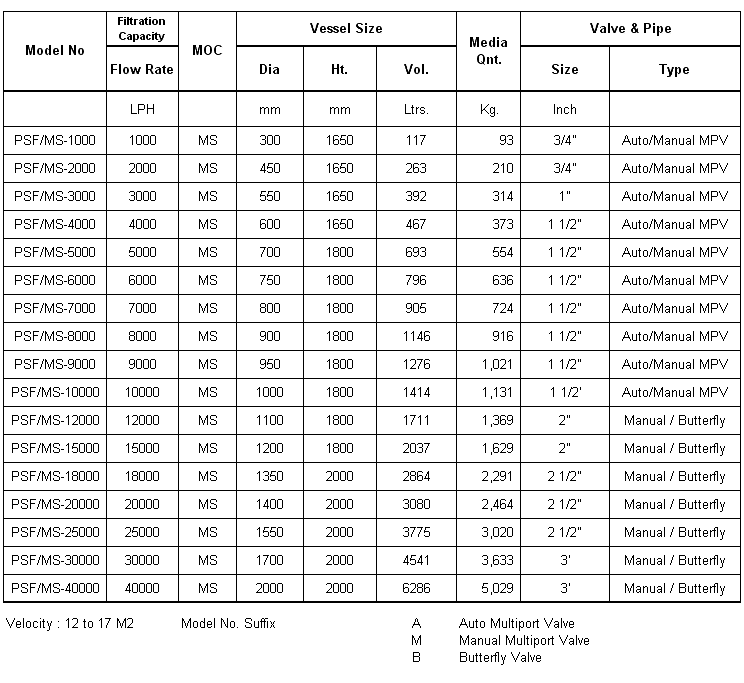

	Pressure Sand Water Filter MS Mild Steel (MS) pressure sand filters are commonly  used across the world for following applications : • Filter high quantity of water. • Thermoelectric power plants. • Irrigation & farming • Aqua culture.
